U.S. Forest Service Signs

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

ADMINISTRATIVE SITE SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	AS-1	54	36	S-10				0-15
	AS-2	72	48	S-12				20-25
	AS-3	108	72	S-18				30-45
	AS-4	144	96	S-24				50+

FOREST/DISTRICT ADMINISTRATIVE SITE SIGN FOR URBAN LOCATION

Layout for One Line Facility Name

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	A-1	34	18	6				*
	A-2	54	30	10				0-25
	A-3	94	46	15				30+

Layout for Two Line Facility Name

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	A-4	34	18	6				*
	A-5	54	30	10				0-25
	A-6	94	46	15				30+

NATIONAL FOREST BOUNDARY ENTRANCE SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	FE-1	54	36	S-10	P-43	43	5.5	0-15
	FE-2	72	48	S-12	P-52	52	5.5	20-25
	FE-3	108	72	S-18	P-80	80	6.5	30-45
	FE-4	144	96	S-24	P-110	110	6.5	50+

NATIONAL FOREST BOUNDARY LEAVING SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	FL-1	54	36	S-10	P-43	43	5.5	0-15
	FL-2	72	48	S-12	P-52	52	5.5	20-25
	FL-3	108	72	S-18	P-80	80	6.5	30-45
	FL-4	144	96	S-24	P-110	110	6.5	50+

MINOR NATIONAL FOREST BOUNDARY ENTRANCE SIGN

		Sign#	L	H	Shield	Credit Line	L	H
TRAILS		MFE-1	18	18
ROADS		MFE-2	27	27

MINOR NATIONAL FOREST LEAVING SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H
TRAILS	MFL-1	18	18
ROADS	MFL-2	27	27

NATIONAL FOREST LAND SIGNS-ENTERING

		Sign#	L	H	Shield	Credit Line	L	H
TRAILS		NFL-E-1	18	18
ROADS		NFL-E-2	27	27

NATIONAL FOREST LAND SIGNS-LEAVING

		Sign#	L	H	Shield	Credit Line	L	H
TRAILS		NFL-L-1	18	18
ROADS		NFL-L-2	27	27

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

SIGN #

NRA-REC

NRA-E

NRA-L

NRA-E (2L)

NRA-L (2L)

NRA-BDY

NRA-BDY-xL

MSA-E & L

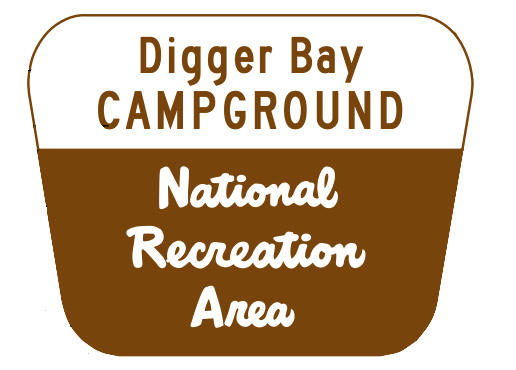

NATIONAL RECREATION AREA SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	NRA-REC-1	48	36	S-10	NRA-P10			0-15
	NRA-REC-2	63	48	S-12	NRA-P12			20-25
	NRA-REC-3	78	60	S-12	NRA-P12			30-45
	NRA-REC-4	93	72	S-15	NRA-P12			50+

NATIONAL RECREATION AREA-ENTERING (one-line)

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	NRA-E-1	54	36	S-10	NRA-P10			0-15
	NRA-E-2	72	48	S-12	NRA-P10			20-25
	NRA-E-3	108	72	S-18	NRA-P12			30-45
	NRA-E-4	144	96	S-24	NRA-P12			50+

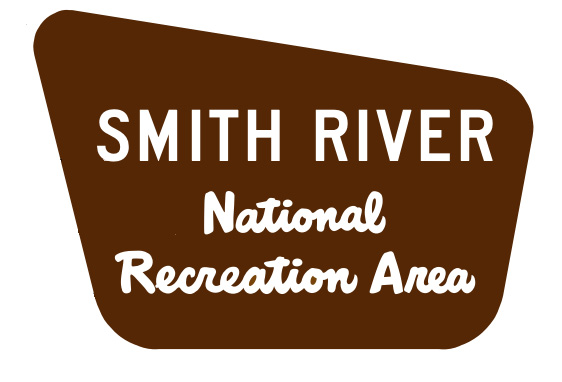

NATIONAL RECREATION AREA-LEAVING (one-line)

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	NRA-L-1	54	36	S-10	NRA-P10	43	5.5	0-15
	NRA-L-2	72	48	S-12	NRA-P10	52	5.5	20-25
	NRA-L-3	108	72	S-18	NRA-P12	80	6.5	30-45
	NRA-L-4	144	96	S-24	NRA-P12	110	6.5	50+

NATIONAL RECREATION AREA-ENTERING (two-line)

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	NRA-E-5	54	36	S-10	NRA-P10			0-15
	NRA-E-6	72	48	S-12	NRA-P10			20-25
	NRA-E-7	108	72	S-18	NRA-P12			30-45
	NRA-E-8	144	96	S-24	NRA-P12			50+

NATIONAL RECREATION AREA-LEAVING (two-line)

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	NRA-L-5	54	36	S-10	NRA-P10			0-15
	NRA-L-6	72	48	S-12	NRA-P10			20-25
	NRA-L-7	108	72	S-18	NRA-P12			30-45
	NRA-L-8	144	96	S-24	NRA-P12			50+

NATIONAL RECREATION AREA ENTERING BOUNDARY SIGN

		Sign#	L	H	Shield	USDA Credit Line	Rd.Speed
		NRA-BDY-2	63	48	S-10	NRA-P-10	0-15
		NRA-BDY-3	78	60	S-12	NRA-P-12	20-25
		NRA-BDY-4	94	72	S-18	NRA-P-12	30-45
		NRA-BDY-5	108	84	S-24	NRA-P-12	50+

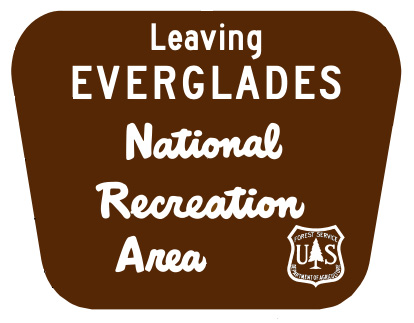

NATIONAL RECREATION AREA LEAVING BOUNDARY SIGN

	Sign#	L	H	Shield	USDA Credit Line	Rd.Speed
	NRA-BDY-2L	63	48	S-10	NRA-P-10	0-15
	NRA-BDY-3L	78	60	S-12	NRA-P-12	20-25
	NRA-BDY-4L	94	72	S-15	NRA-P-12	30-45
	NRA-BDY-5L	108	84	S-18	NRA-P-12	50+

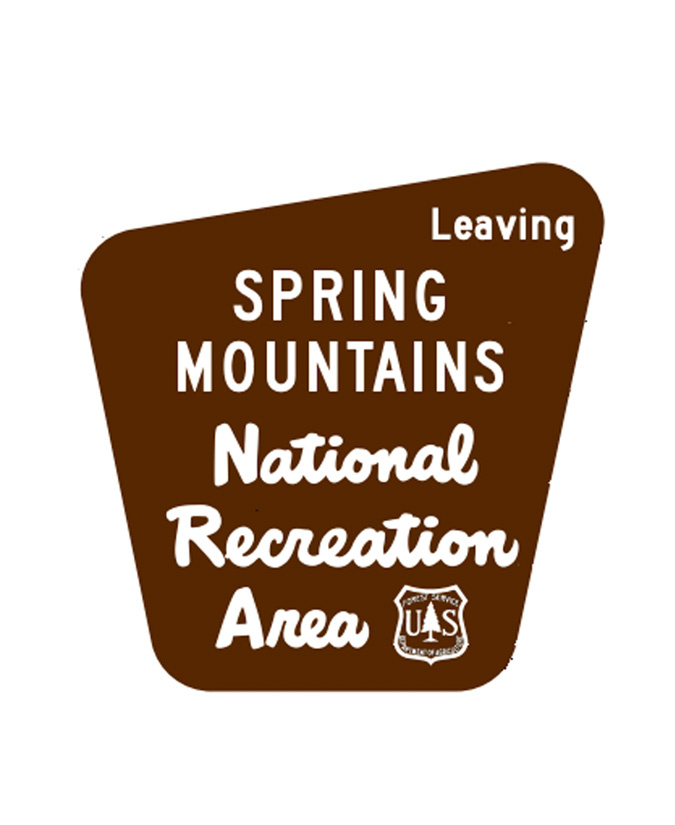

MINOR SPECIAL AREA ENTERING & LEAVING SIGNS

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	MSA-E	27	27	4
	MSA-L	27	27	4

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

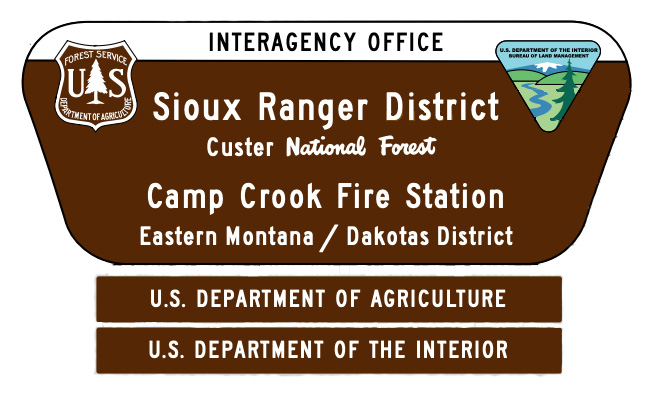

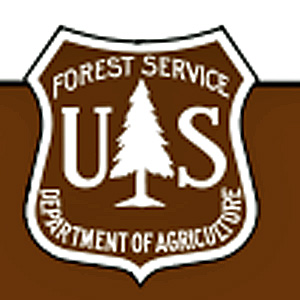

BLM/FS INTERAGENCY OFFICE SIGNS

	Sign#	L	H	FS Shield/ BLM EMBLEM	USDA Credit Line	L	H	Rd.Speed
	BLM/FS-1	72	27	10	P-43	43	5.5	0-15
S SHIELD	BLM/FS-2	96	36	14	P-52	52	5.5	20-25
	BLM/FS-3	120	45	16	P-80	80	6.5	30-45
BLM EMBLEM	BLM/FS-4	144	54	20	P-110	110	7.5	50+

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

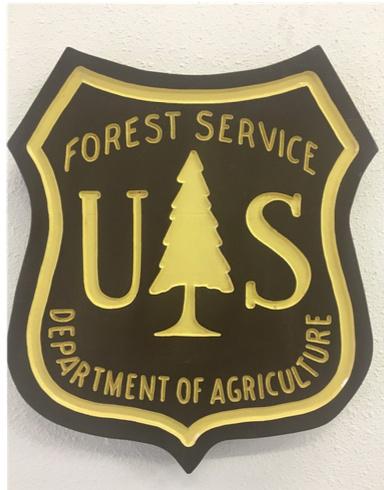

SHIELD

		Sign#	L	H
		S-8	8
		S-10	10
		S-12	12
		S-15	15
		S-18	18
		S-24	24
		S-28	28
		S-32	32

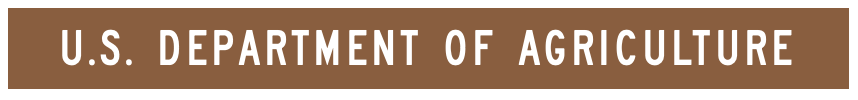

CREDIT LINE

	Sign#	L	H
	P-37	37	3.5
	P-43	43	5.5
	P-52	52	5.5
	P-68	68	6.5
	P-80	80	6.5
	P110	110	7.5

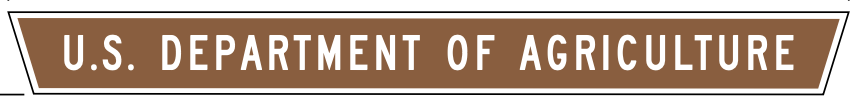

NATIONAL RECREATION AREA- CREDIT LINE #2

	Sign#	L	H	Fits Panel Length

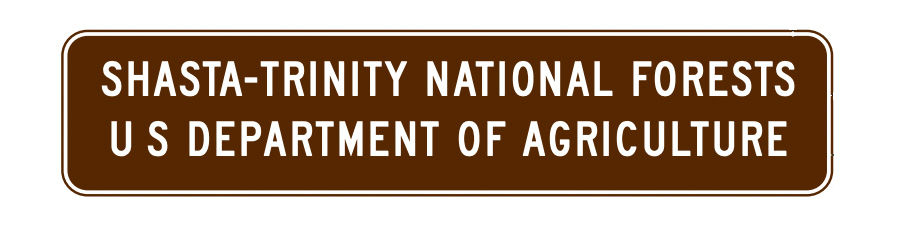

	NRA-P10	Varies	10	Up to 63

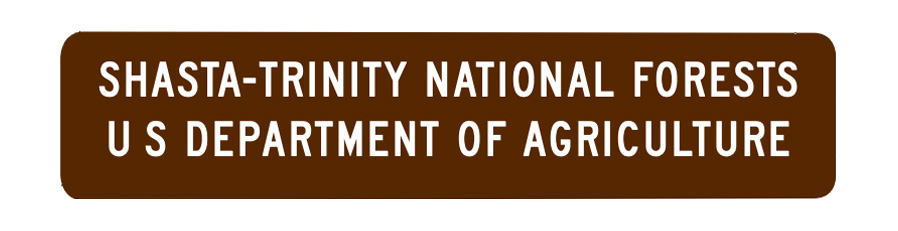

	NRA-P12	Varies	12	78+

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

WILDERNESS/PRIMITIVE AREA ENTRANCE SIGN

Sign#	L	H	Shield
WPH-1	40	20	WP-S-8
WPH-2	60	30	WP-S-10

	Sign#		L	H	Shield	USDA Credit Line

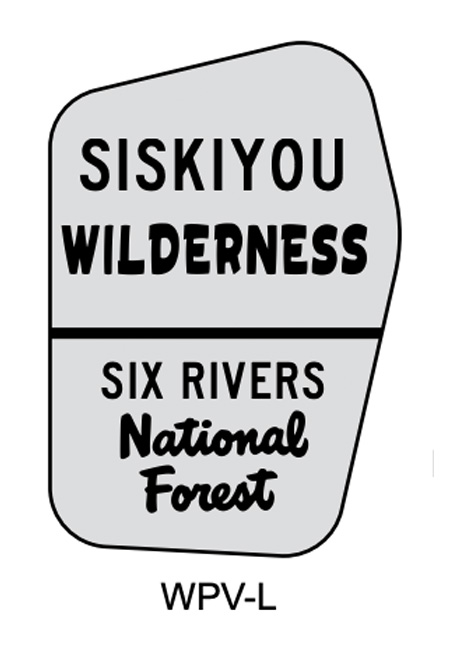

	ONE LINE WILDERNESS NAME
	WPV-1		13	18	W-PS-8
	WPV-2		24	36	W-PS-10
	TWO LINE WILDERNESS NAME
	WPV-1		13	18	W-PS-8
	WPV-2		24	36	W-PS-10

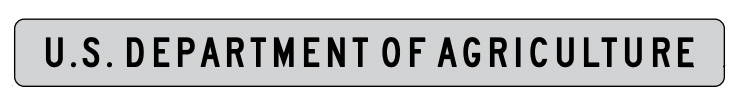

WILDERNESS/PRIMITIVE AREA-USDA CREDIT LINE

Sign#	L	H
WP-PV	22	3
WP-PH	42	3.5

WILDERNESS/PRIMITIVE AREA SHIELD

	Sign#				To Be Used With			SHIELD
	WP-S-8				WPV-1 & 2			8
	WP-S-10				WPH-1 & 2			10

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

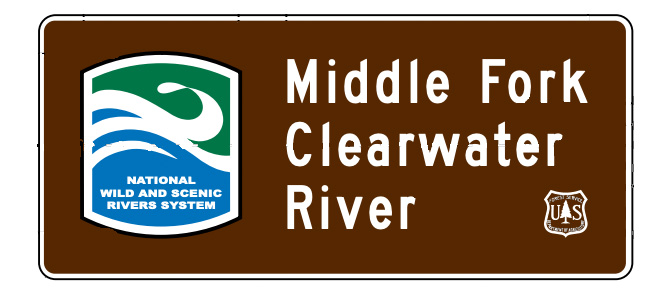

NATIONAL WILD AND SCENIC RIVER SIGNS

Sign#	L	H	Shield	WSR-LOGO	Rd.Speed
WSR-1	–	18	3	WSR-L1	0-15
WSR-2	–	24	5	WSR-L2	20-25
WSR-3	–	30	6	WSR-L3	30-45
WSR-4	–	36	8	WSR-L4	50+

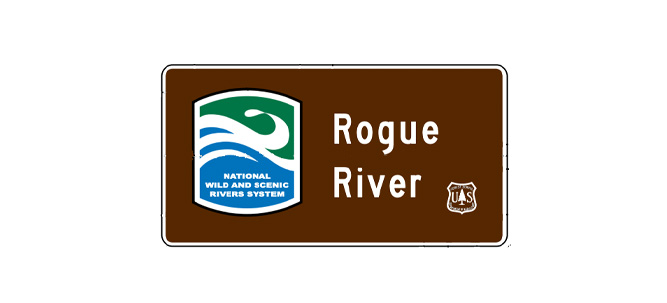

NATIONAL WILD AND SCENIC RIVER LOGO

	Sign#	L	H					Rd.Speed
	WSR-L1	10.25	12					NA
	WSR-L2	15.5	18					0-15
	WSR-L3	20.75	24					20-25
	WSR-L4	25.75	30					30-45
	WSR-L5	31	36					50+

NATIONAL WILD AND SCENIC RIVER LOGO

	Sign#	L	H				Rd.Speed
	WSRa-1	18	12				0-15
	WSRa-2	26	16				20-25
	WSRa-3	30	20				30-45
	WSRa-4	36	22				50+

Pictures of signs retrieved from:https://www.fs.usda.gov/Internet/FSE_DOCUMENTS/stelprd3810021.pdf

RECREATION SITE IDENTIFICATION SIGN

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	RS-1	48	30	S-10	P-37			0-15
	RS-2	63	40	S-12	P-43			20-25
	RS-3	78	50	S-12	P-52			30-45
	RS-4	93	60	S-15	P-68			50+

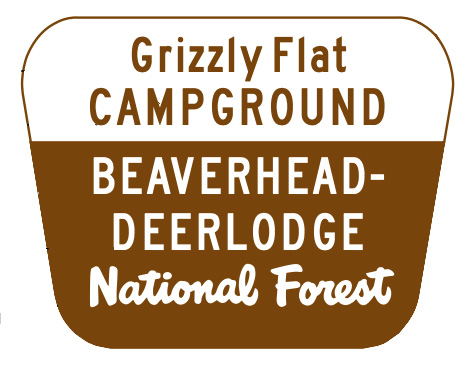

RECREATION SITE IDENTIFICATION SIGN- MODIFIED LAYOUT TWO LINE SITE TYPE

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	RSM1-1	48	30	S-10	P-37			0-15
	RSM1-2	63	40	S-12	P-43			20-25
	RSM1-3	78	50	S-12	P-52			30-45
	RSM1-4	93	60	S-15	P-68			50+

RECREATION SITE IDENTIFICATION SIGN-MODIFIED LAYOUT TWO LINE FOREST NAME

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	RSM2-1	48	36	S-10	P-37			0-15
	RSM2-2	63	48	S-12	P-43			20-25
	RSM2-3	78	60	S-12	P-52			30-45
	RSM2-4	93	72	S-15	P-68			50+

OPTIONAL RECREATION SITE IDENTIFICATION SIGNS

	Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
	RSE-1	30	14					0-15
	RSE-2	48	20					20-25
	RSE-3	60	24					30-45
	RSE-4	72	28					50+

SITE APPROACH SIGNS

	Sign#	L	H		two-line facility name or legend			Rd.Speed
	SA-1a	38	40					0-45
	SA-2b	48	52					50+
					one-line facility name or legend
	SA-1c	38	40					0-45
	SA-2d	48	52					50+
					Two-line facility name or legend
	SA-1e	38	40					0-45
	SA-2f	48	52					50+
					One-line facility name or legend
	SA-1g	38	40					0-45
	SA-2h	48	52					50+
					Two-line facility name or legend
	SA-1i	38	40					0-45
	SA-2j	48	52					50+
					One-line facility name or legend
	SA-1k	38	40					0-45
	SA-2l	48	52					50+

FOREST ROUTE MARKER

Sign#	L	H	Shield	USDA Credit Line	L	H	Rd.Speed
M-7-18	54	36	S-10	P-43	43	5.5	0-15
M-7-24	72	48	S-12	P-52	52	5.5	20-25
